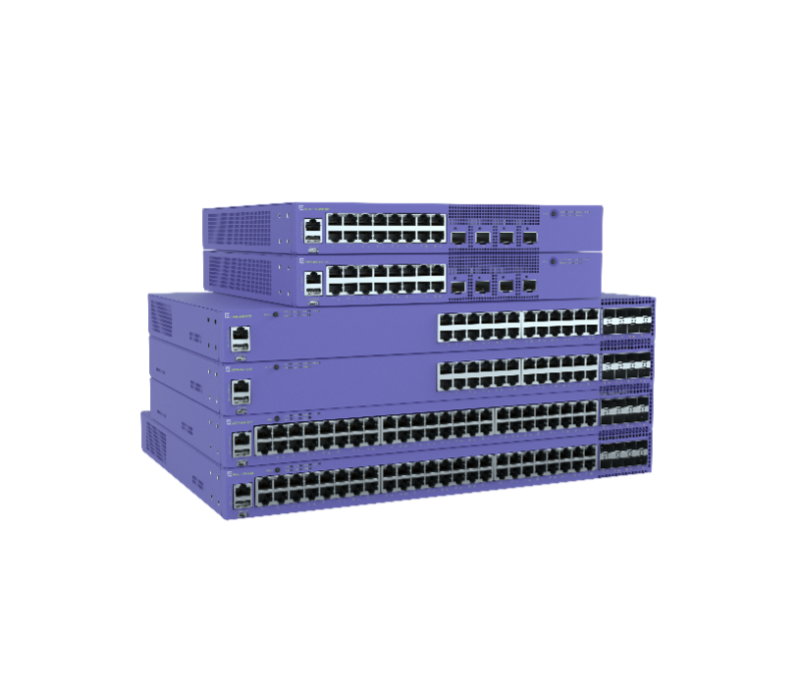

Extreme Switch 5320-48P-8XE

Extreme Switch 5320-48P-8XE

Liên hệ
Extreme Network
5320-48P-8XE
Có hàng

Hỗ trợ 54 cổng kết nối:
+ 48 x 10/100/1000Base-T PoE (30W)
+ 8 cổng 1GBASE-X SFP (bao gồm 2 cổng stacking 10GB) hỗ trợ nâng cấp lên 10GB SFP+

Mô tả sản phẩm 5320-48P-8XE

  • Băng thông chuyển mạch: 256 Gbps
  • Tốc độ chuyển gói: 190.5 Mpps
  • Trident3-X1/X2 internal ARM A72 CPU
  • 1 GB DDR4 ECC memory,
  • 1 GB SLC NAND Flash Memory, 8 MB SPI flash
  •  IPv4 routes: ≥12000
  • IPv4 ARP: ≥16000
  • Số lượng quy định Clear-flow hỗ trợ: ≥ 8192
  • Số lượng miền EAPS có thể hỗ trợ: ≥ 64
  • Hỗ trợ quản lý trên cloud Public hoặc Private
  • Hỗ trợ 1 năm với bản quyền ExtremeCloud IQ

Tính năng Switching

  • Hỗ trợ STP với tính năng Loop Protect, Backup Root, BPDU Restrict
  • Simple Loop Prevention Protocol (SLPP)
  • Hỗ trợ giao thức LACP, M-LAG, CDP, EAPS
  • Hỗ trợ VMAN—CNP port, double tag
  • Hỗ trợ IEEE 802.1Q: MVRP và  MRP

Thông số kỹ thuật 5320-48P-8XE

Model5320-48P-8XE
Interfaces48 x 10/100/1000Base-T 802.3at (30W) ports
  • Full/Half-Duplex (autosensing)
  • MACsec-capable
8 x 1Gb SFP uplink ports (includes 2 x Stacking ports @ 10Gb)
  • Can be upgraded to 10Gb SFP+ via software license
  • MACsec-capable
  • 100Mb operation supported on last 4 uplink ports
1 x Serial console port (RJ-45)
1 x USB A ports for management or external USB flash
1 x USB Micro-B console port
Max Active 10/100/1000Mb ports48
Max Active 1Gb/10Gb SFP/SFP+ ports8
Max Active 10Gb Stacking ports2
Aggregated Switch Bandwidth256 Gbps
Max Frame Forwarding Rate190.5 mpps
Software Scaling Values5320 with Switch Engine (EXOS)
• MAC Table: 32,000
• IPv4 ARP Table: 16,000
• IPv4 Route Table: 12,000 (48-port models); 8,000 (16 and 24-port models)
• IP Multicast Entries (S,G,V): 6,000
• IPv6 Neighbor Table: 6,000
• IPv6 Route Table: 6,000 (48-port models); 4,000 (16 and 24-port models)
• ACLs (Ingress/Egress): 8,000/1,024 (48-port models); 8,000/512 (16 and 24-port models)
• QoS Egress Queues per port: 8
• VLANs: 4,094
• Routed VLANs: 1533 (48-port models); 509 (16 and 24-port models)
5320 with Fabric Engine (VOSS)
• MAC Table: 32,000
• IPv4 ARP Table: 15,000 (48-port models); 8,000 (16 and 24-port models)
• IPv4 Route Table: 12,000 (48-port models); 8,000 (16 and 24-port models)
• IP Multicast Entries (S,G,V): 4,000 (48-port models); 2,000 (16 and 24-port models)
• IPv6 Neighbor Table: 8,000
• IPv6 Route Table: 6,000 (48-port models); 4,000 (16 and 24-port models)
• ACLs (Ingress/Egress): 1,024/400 (48-port models); 1,024/190 (16 and 24-port models)
• QoS Egress Queues per port: 8
• VLANs: 4,059
• IP Interfaces (Routed VLANs): 248
Weights and Dimensions
Weight 11.0 lb/5.0 kg
Physical Dimensions17.3 in W/1.7 in H/13.0 in D
440 mm/43.6 mm/330 mm
Max PoE Power Budget740W
Minimum/Maximum Power Consumption and Heat Dissipation
Minimum Power Consumption (Watts)30
Minimum Heat Dissipation (BTU/hr)104
Maximum Power Consumption (Watts)924
Maximum Heat Dissipation (BTU/hr)629
Operating Conditions• Temp: 0° C to 50° C (32° F to 122° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Altitude: 0 to 3,000 meters (9,850 feet)
• Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms
